Model G: #Greenheck, Inc.
Greenheck - Centrifugal Direct Drive Roof Exhauster
Model G centrifugal exhaust fans are direct driven fans designed for roof mounted applications exhausting relatively clean air. They feature a spun aluminum housing and a non-overloading, backward inclined aluminum wheel. Motors are located out of the air stream with positive cooling by ambient air. Model G fans are UL listed and licensed to bear the AMCA Certified Ratings Seals for air and sound performance.
Stock Notes:
- Units are stocked with Varigreen Motors
- Potentiometer dial pre-mounted on motor for speed control
- Disconnect switch included
- Rigid wire birdscreen included
Available Accessories:
- Backdraft Dampers (model WD-100)
- Prefabricated roof curbs

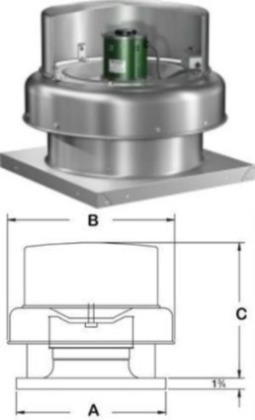

| Dimensional Data | ||||
| Model | A | B | C | Roof Opening |
| G-095-VG | 17" | 21.75" | 14.625" | 12.5" x 12.5" |
| G-103 & 123 VG | 19" | 24.375" | 23.75" | 14.5" x 14.5" |
| G-143-VG | 22" | 28.375" | 23.75" | 18.5" x 18.5" |
| Performance Data And Pricing | |||||||||||||||||
| Model | Static Pressure in Inches wg | Price | |||||||||||||||
| 0 | .1 | .125 | .15 | .2 | .25 | .3 | .375 | .5 | .625 | .75 | .875 | 1 | 1.25 | 1.5 | |||
|
G-095-VG 1725 RPM 1/6 HP |
CFM | 1179 | 1114 | 1098 | 1081 | 1048 | 1013 | 969 | 903 | 800 | 688 | - | - | - | - | - | $685.00  |
| BHP | 0.13 | 0.14 | 0.14 | 0.14 | 0.15 | 0.15 | 0.15 | 0.16 | 0.16 | 0.16 | - | - | - | - | - | ||
| Sones | 11.4 | 11.4 | 11.4 | 11.5 | 11.4 | 11.2 | 11 | 10.9 | 11.3 | 11.3 | - | - | - | - | - | ||
|
G-103-VG 1140 RPM 1/4 HP |
CFM | 1462 | - | 1405 | - | - | 1351 | - | 1298 | 1250 | 1193 | 1126 | 1052 | 955 | - | - | $985.00 |
| BHP | 0.25 | - | 0.26 | - | - | 0.27 | - | 0.28 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | - | - | ||
| Sones | 12.2 | - | 11.9 | - | - | 11.5 | - | 11.2 | 10.9 | 10.3 | 10.0 | 9.5 | 9.0 | - | - | ||
|
G-123-VG 1725 RPM 1/2 HP |
CFM | 2093 | - | 2038 | - | - | 1984 | - | 1928 | 1871 | 1810 | 1743 | - | 1600 | 1426 | 1180 | $1075.00 |
| BHP | 0.40 | - | 0.42 | - | - | 0.44 | - | 0.45 | 0.46 | 0.47 | 0.48 | - | 0.50 | 0.50 | 0.47 | ||
| Sones | 17.4 | - | 17.2 | - | - | 17.0 | - | 16.8 | 16.7 | 16.4 | 16.2 | - | 15.5 | 14.9 | 14.0 | ||
|
G-143-VG 1550 RPM 3/4 HP |
CFM | 2875 | - | 2797 | - | - | 2719 | - | 2644 | 2566 | - | 2396 | - | 2191 | 1910 | 1297 | $1361.00 |
| BHP | 0.71 | - | 0.73 | - | - | 0.74 | - | 0.76 | 0.77 | - | 0.78 | - | 0.79 | 0.76 | 0.65 | ||
| Sones | 17.7 | - | 18.0 | - | - | 17.4 | - | 17.2 | 16.8 | - | 15.0 | - | 14.8 | 14.8 | 14.9 | ||
