Model GRS:
#Greenheck, Inc.
Greenheck - Spun Aluminum Gravity Ventilator
Model GRS is a spun aluminum gravity ventilator designed for intake or relief applications with either natural gravity or positive pressure systems. The GRS appearance blends with the other products in the Greenheck family and with its low silhouette, avoids the problem of detracting from architectural aesthetics.
Stock Notes:
- Aluminum curb cap with pre-punched mounting holes
- Rigid wire birdscreen included
- Recommended roof opening dimension is at least 2.5 inches larger than damper size
Accessories:
- Backdraft dampers (model WD-100)
- Prefabricated roof curbs

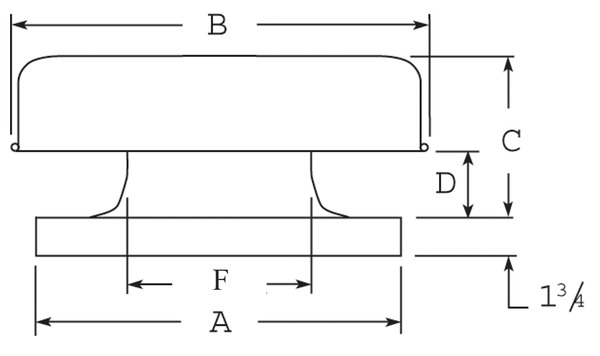

| Dimensional Data | |||||
| Model | A | B | C | D | F |
| GRS-8 | 19" | 20.50" | 7.25" | 1.50" | 8.25" |
| GRS-10 | 19" | 20.50" | 7.75" | 2" | 10.25" |
| GRS-12 | 22" | 29" | 10" | 3.50" | 12.25" |
| Additional Sizes Available | ||||
| In Stock | 1-Day | 3-Day | 10-Day | |
| Greenheck Quick Delivery |  |
 |
 |
 |
| *Please consult your EAP, Inc. Sales Representative for information. | ||||
| Performance Data and Pricing | |||||||||||
| Model | Compacity (CFM) in inches WG | Price | |||||||||
| .04 | .06 | .08 | .10 | .15 | .20 | .25 | .30 | .35 | |||
| GRS-8 | Relief | 231 | 282 | 326 | 365 | 446 | 516 | 576 | 631 | 682 | $198.00  |
| Intake | 178 | 218 | 252 | 282 | 345 | 398 | 445 | 488 | 527 | ||
| GRS-10 | Relief | 331 | 406 | 468 | 524 | 641 | 741 | 828 | 907 | 980 | $216.00 |
| Intake | 279 | 342 | 395 | 442 | 541 | 624 | 698 | 765 | 826 | ||
| GRS-12 | Relief | 468 | 573 | 662 | 740 | 907 | 1047 | 1171 | 1282 | 1385 | $228.00 |
| Intake | 400 | 490 | 566 | 633 | 775 | 895 | 1001 | 1097 | 1184 | ||
