Model SDG: #Price

Price - Spiral Register

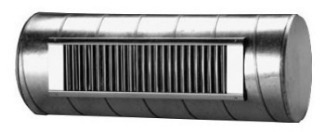

Model SDG spiral registers are manufactured from galvanized sheet steel and feature adjustable double deflection blades and an air extractor.  Unit is designed to be mounted directly on spiral duct without the need for a rectangular register tap. Gasketing material is used around the neck of the register to prevent air leakage.


(W x H)

CFM Range

Min. Duct Dia.

14" x  4"  54 -  216 6"
14" x  6" 108 -  432 12"
18" x  4"  72 -  288 6"
18" x  6" 144 -  576 12"
22" x  4"  90 -  360 6"
22" x  6" 180 -  720 12"
22" x 10" 300 - 1200 20"
